Product description, technical parameters and configuration
Character
●Single-chip microcomputer control, LCD Screen (128*64 Dots)
●Large LCD display can display multiple sets of data
●Huge memory space to store multiple sets of data and curves
●Auto zero,100% adjustment function
●Wavelength automatic adjustment
●Wrap lights, automatic filter change, large sample pool (5mm ~ 100mm)
●Standard samples having a maximum ten-point standard curve measurement functions built
●Direct input by K, B factor for quantitative measurement standard curve
●Can be directly input and the corresponding standard concentration values establish a standard curve for quantitative measurement
●Adjustable electric saving standard curve parameter measuring set, can save a plurality of standard curve
●Can be edited at any time of the standard curve, user-friendly
●General Parallel printer interface with or slightly beat interfaces can print the title bar, the measurement data, curve parameters, the standard curve and the curve sample points
●With USB interface
●Can achieve more accurate and flexible measurement requirements (optional) via PC control
1Technical indicators and basic parameters
1.1Wavelength Range: 325～1000nm
1.2Band Width: 4nm
1.3Wavelength Accuracy:±2.0nm
1.4Wavelength Repeatability:1nm
1.5Photometric Accuracy: ±0.5% τ
1.6Photometric Repeatability:0.2% τ
1.7Wavelength Setting:Manual
1.8Photometric Mode:Tansmittance,Absorbancy,concentration,energy
1.9Stability: 0.001A/h(500nm After preheating)
1.10Stray Light:≤0.05% τ (220nm NaI,340nm NaNO2)
1.11Photometric Display Range: -0.3～3A
1.12Display mode: 4 LED display
1.13Detector:Import Silicon Photodiode
1.14Light:Import Tungsten Lamp
1.15Power Requirement: AC 220V/50Hz 110V/60Hz
1.16Power: 120W
Technical Specifications
| Wavelength Range | 200～1000nm |
| Band Width | 4nm |
| Wavelength Accuracy | ±2.0nm |
| Wavelength Repeatability | 0.2nm |
| Photometric Accuracy | ±0.5% τ |
| Photometric Repeatability | 0.2% τ |
| Stray Light | ≤0.05% τ (220nm NaI,340nm NaNO2) |
| Stability | 0.001A/30min@500nm |
| Photometric Mode | T,A,C,E |
| Wavelength Setting | Automatic |
| Photometric Display Range | -0.3～3A |
| Display mode | LCD Screen (128*64 Dots) |
| Detector | "Import Silicon Photodiode |
| Light Source | Import Deuterium Lamp & Tungsten Halogen Lamp |
| Power Requirement | AC 220V/50Hz 110V/60Hz |
| Power | 120W |
| Dimensions(W*D*H) | 460×330×210mm |
| Weight | 11Kg |
Product Tags:
|
|

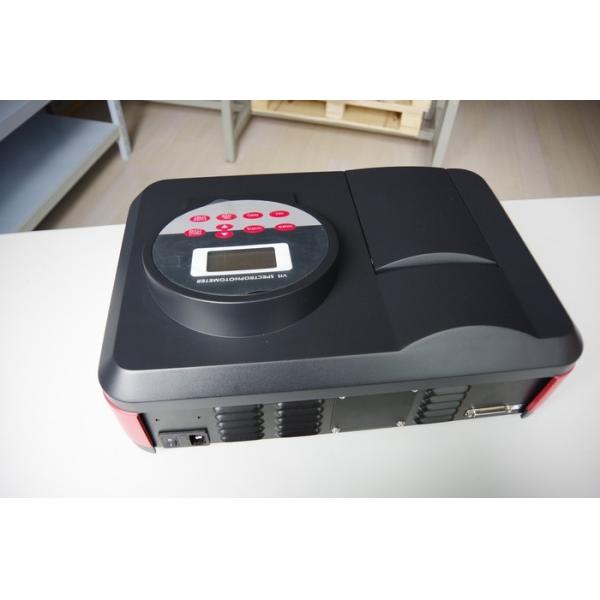

Visible Auto V-1200 Single Beam Spectrophotometer With Lcd Screen Images
|
